Rulers (DXF, PDF, PNG)

Here are a few ruler CAD drawings I've created. Feel free to download or print them for use in your own projects.

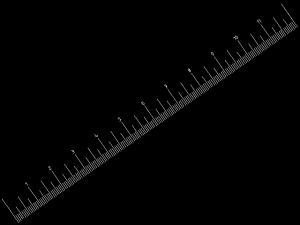

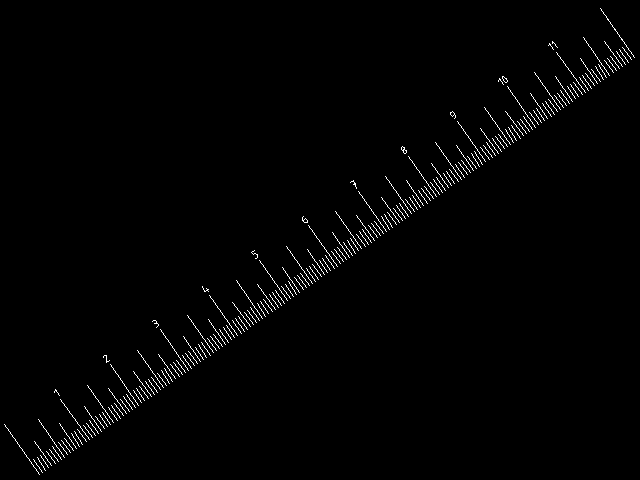

Angled 12" Ruler

This is a 12“ ruler drawn at a 35 degree angle so that it fits on a standard US Letter size page.

Angled 12” Ruler: DXF PDF PNG
